Discovery | Electronics Add-On

https://shop.openuc2.com/web/image/product.template/2765/image_1920?unique=a842374

Discovery | Electronics expands the Core with a digital control unit, along with a software suite, a controllable, motorized axial movement unit, an array of individually controllable LEDs, and a monochrome camera. This allows you to set up your first automated imaging workflow and lay the foundation for professional data processing. Upgrade your smartphone microscope into a full-fledged, remote-controlled microscope.

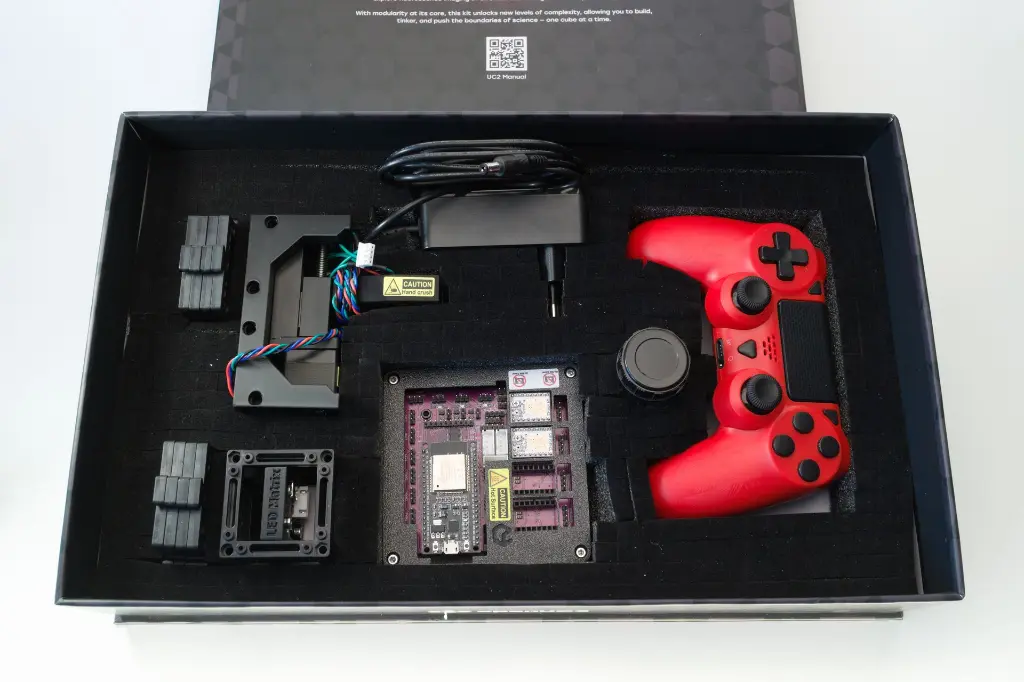

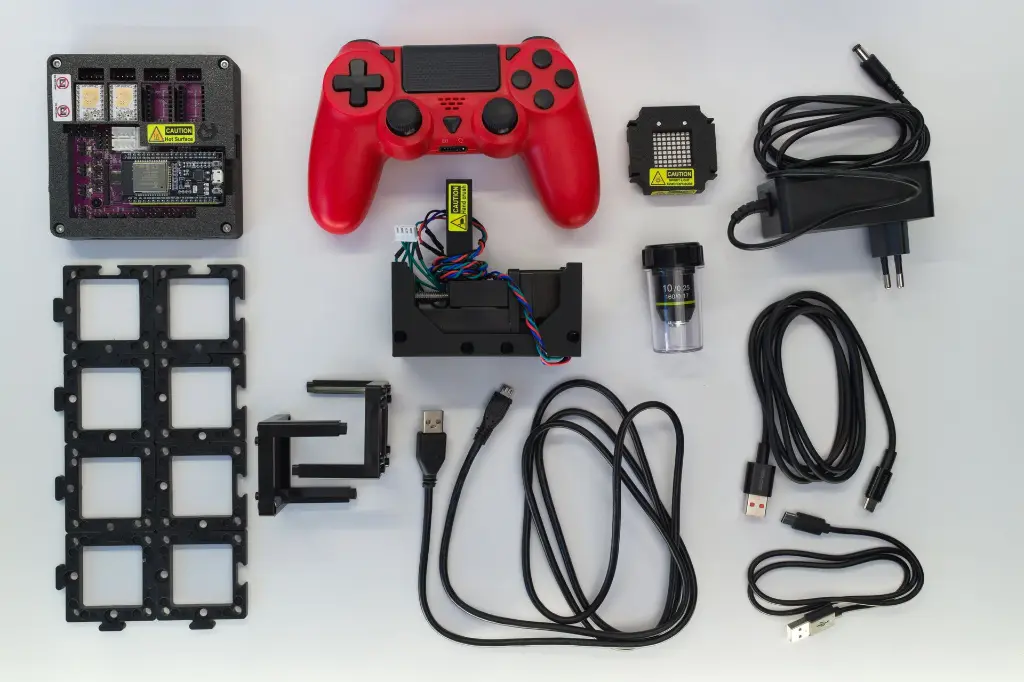

Included Components
Cube Modules

Electronic Z-Stage (NEMA 11 motor, RMS Thread, 25mm travel range, <1µm step size)
LED Array (for advanced illumination techniques)
Additional Accessories

10x Puzzle Baseplates
1x Objective Lens (10x, NA=0.25, finite)
UC2 Electronics (ESP32-based, 2x2 cube, slots for TMC2209 stepper drivers, ports for LEDs, lasers, and other peripherals, compatible with UC2-eSP firmware)
Micro USB Cable and USB-C Cable
PS4-Compatible Controller (wireless control)
12V Power Supply
Note: works only in combination with *Discovery | Core*.

openUC2 Electronics Add-On

 Does not work without CoreBox

Automate Your Microscope with Ease

The openUC2 Electronics Add-On is a modular and open-source toolkit designed to introduce you to the automation of traditional microscopes. With cutting-edge components like an ESP32 microcontroller, stepper motor drivers, and an advanced LED array, this kit provides everything you need to start exploring automated imaging workflows.

Included Components

Cube Modules

  • Electronic Z-Stage (NEMA 11 motor, RMS Thread, 25mm travel range, <1µm step size)
  • LED Array (for advanced illumination techniques)

Additional Accessories

  • 10x Puzzle Baseplates
  • 1x Objective Lens (10x, NA=0.25, finite)
  • UC2 Electronics (ESP32-based, 2x2 cube, slots for TMC2209 stepper drivers, ports for LEDs, lasers, and other peripherals, compatible with UC2-eSP firmware)
  • Micro USB Cable and USB-C Cable
  • PS4-Compatible Controller (wireless control)
  • 12V Power Supply

Features and Applications


  • ESP32 Microcontroller: Runs the UC2-eSP firmware for seamless integration with Python, JavaScript, and other programming interfaces.
  • Precision Automation: Achieve sub-micron accuracy with the Z-stage, enabling advanced tasks like autofocus by capturing contrast curves.
  • Remote Control: Use the PS4 controller for intuitive, wireless operation of the microscope.
  • LED Array: Test and experiment with digital contrast techniques, such as differential phase contrast (DPC).
  • Software Integration: Quickly integrate the electronics into the Python-based ImSwitch software for advanced control and imaging.


Explore Advanced Automation Today

Transform your microscope into a fully automated imaging system with the openUC2 Electronics Add-On. Experiment, innovate, and build workflows tailored to your research needs.

Learn More

549.00 € 549.0 EUR 549.00 € VAT Excluded

549.00 € VAT Excluded

    This combination does not exist.

    Contact us
    Self Created | Self Produced Shipping in 4 Weeks

    Terms and Conditions
    Shipping rates:
    Shipping rates are calculated automatically based on the destination country. We reserve the right to adjust the shipping cost and contact you before dispatch if the actual rate exceeds the displayed amount by more than 20%. In that case, you will have the option to confirm or cancel your order.
    Price differences may occur for deliveries to crisis regions, remote or hard-to-reach areas, or due to other unforeseen circumstances that significantly increase shipping costs.

    Expand Your Setup

    This is an Add-On to be combined your openUC2 CoreBox for extended capabilities. While this set does not include a camera, upgrading to the Infinity Package adds imaging functionalities to complete your automated microscope.
