Our click-n-go professional microscope
FRAME stands for Fast and Rigid Automated Microscope engine
and is our next step into establishing professional modular
microscopes. It provides a flexible, fully automated XYZ scanning
microscope platform that separates optical pathways from mechanincal
movement, enabeling incomparable flexibility. With standardized
interfaces, you can erfortlessly integrate and exchange optical setups
without realigment.
Modular Soft- and Hardware

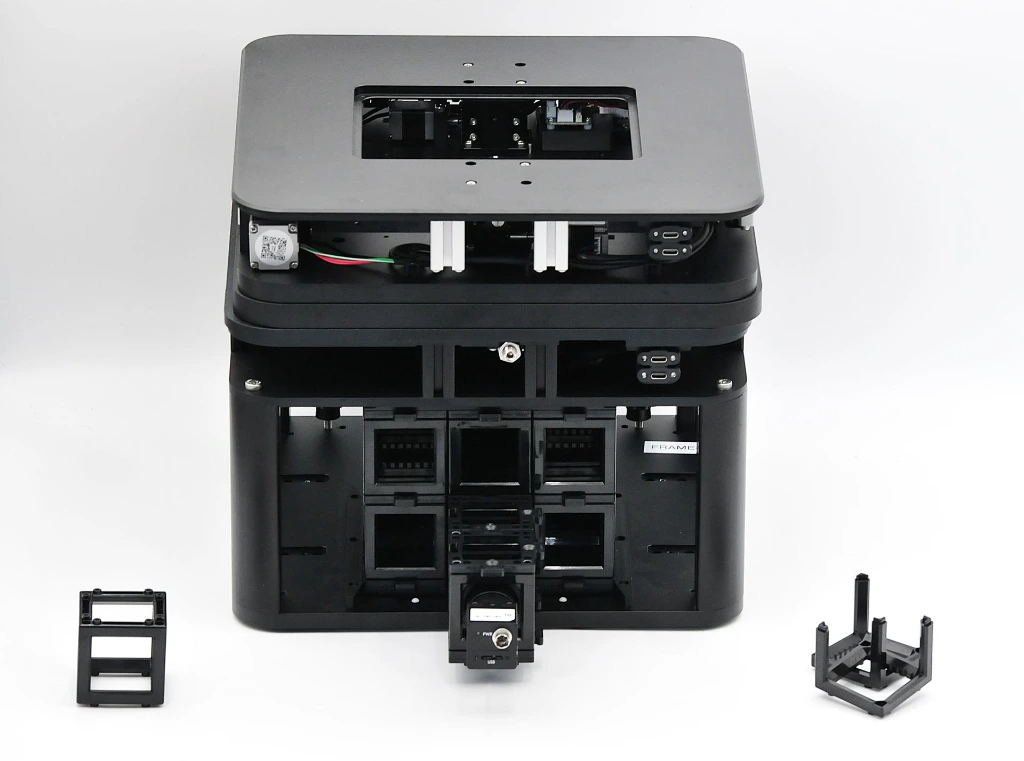

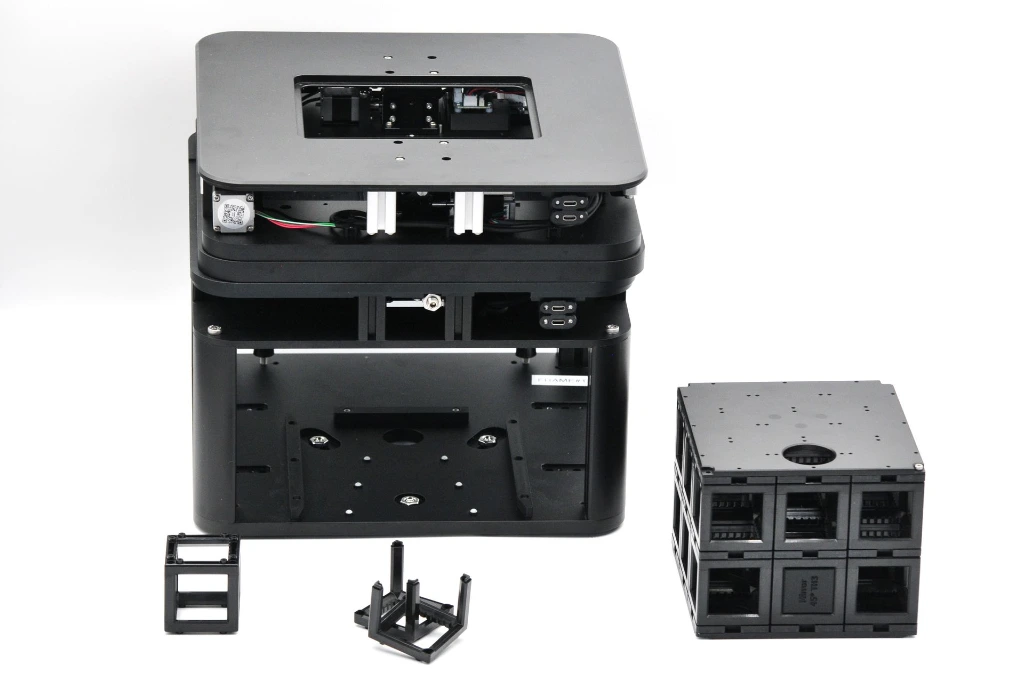

The FRAME's modular concept lets you easily assemble, test, and
exchange optical setups. Pre-test optics externally, insert them
directly into the stable FRAME system and instantly capute hig_quality
images.
- Quick and flexible configuration
- Precise, stable and repeatable optical aligment
- Compatible with custom 3rd-party modules
- Current
collaborations: FLIM LAB for flouresence lifetime imaging microscopy
(FLIM) and ARKITEKT.live for decentralized lab automation
- Browser-Based Control via Raspberry Pi & Docker
- Customizable layer that can easily be swapped in and out based on customer needs
- Simple setup and unversal accessibility
- Effortless control from any browser
- integrated SDK for expanindg funktionality and automation into external services (e.g. robots)
- Open API ensuring ismple device interaction
- Modular electronics leveraging CAN bus and UC2-ESP32 firmware
KEY Features

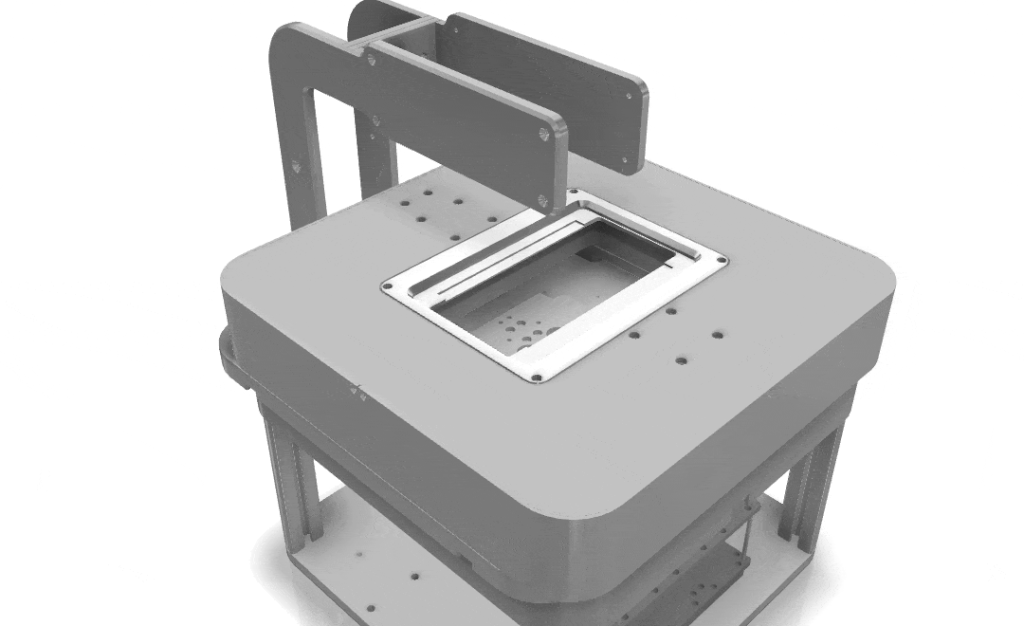

- Metal housing

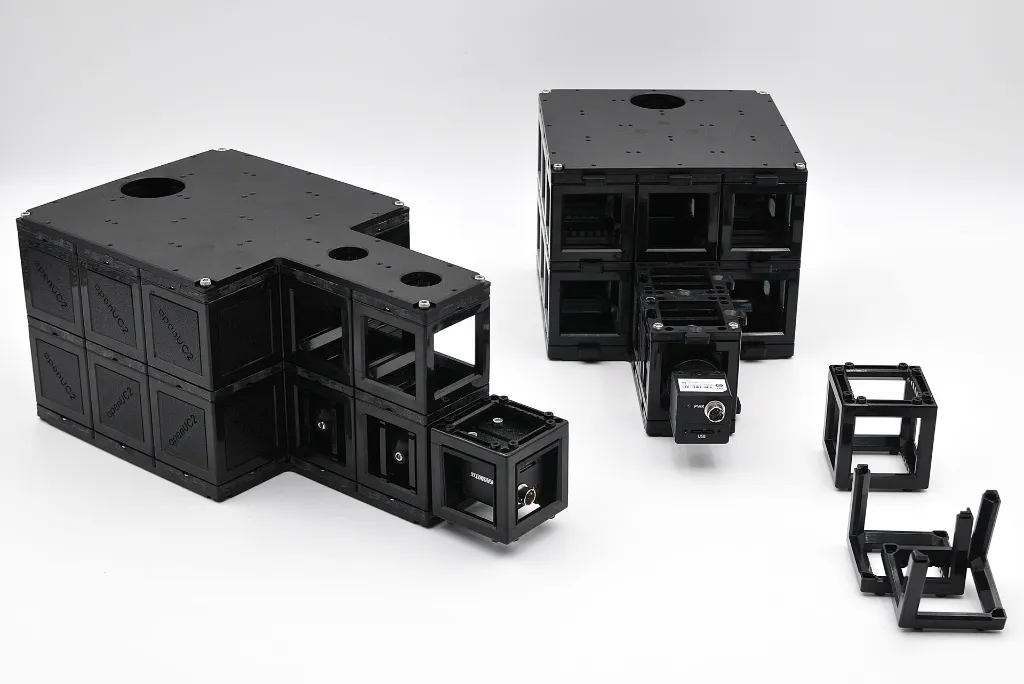

- Modular and open design with standardized interfaces (UC2)
- Fully automated XYZ motion with <1um resolution and >50x50mm travel range
- Open-source hardware and software
- protoyping and proof of prinziple
- compatible with all openUC2 kits and boxes
- CAN Bus electronicss: add axes, senosrs or IO boards on the fly
- fibre-coupled Laser + emission-filterset at choosable wavelength for widefield fluorescence (reflection) mode
- LED array for brightfield (transmission) mode
- 60x objective to allow ~1μm resolution
- mono-camera w. framerates >40fps
- oUC2e with graphical user interface
Configurations

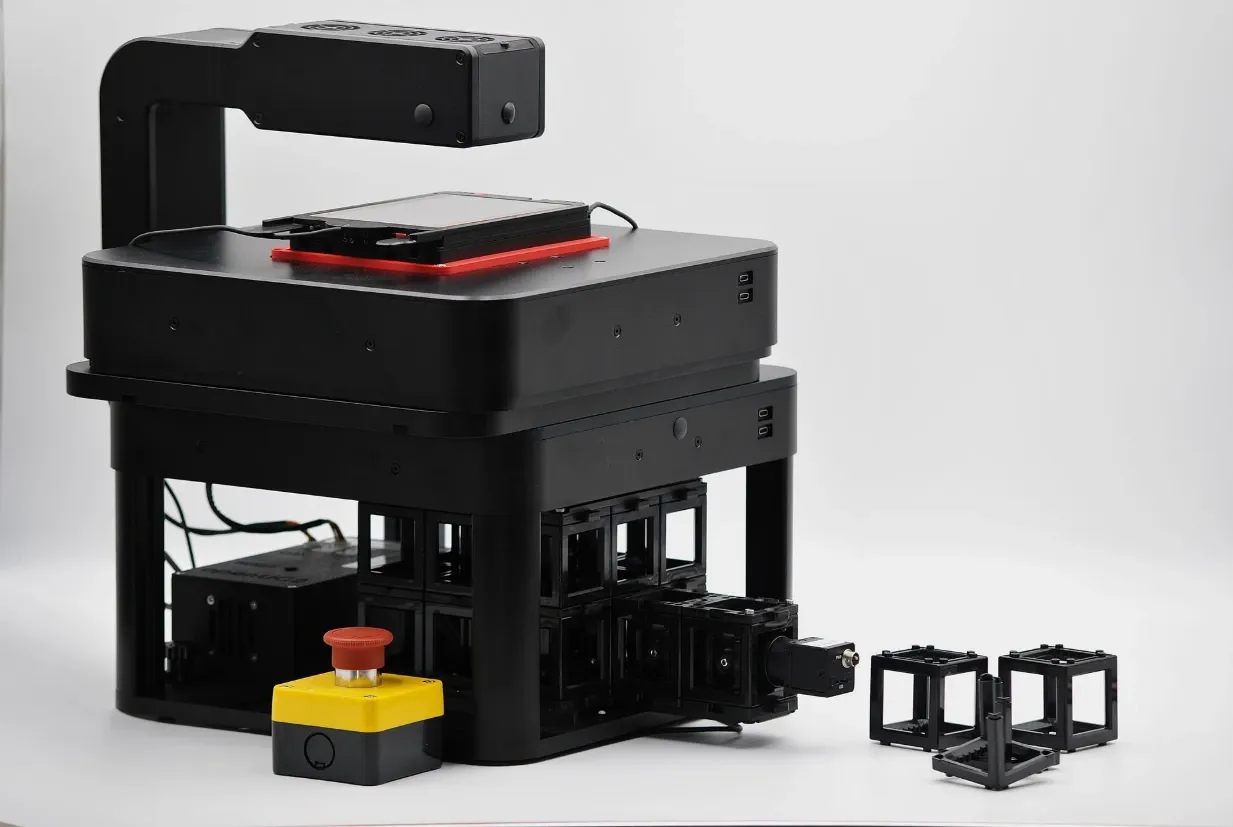

The standard Brightfield configuration includes:
- Objective: Soptrop high-rank plan 4x/0.1 + 20x/0.4
- Camera: HIK MV-CS060
- Illumination: single LED
- Overview Webcam
Customisation:
for Customisation please contact us, tell us about your application and your specific needs. examples of customisation are:
- different stages
- different objectives
- different camera
- different type of illumination
- adding Laser(s)
- multicolor options
