Professional | FRAME
Our click-n-go professional microscope of the Investigator Line

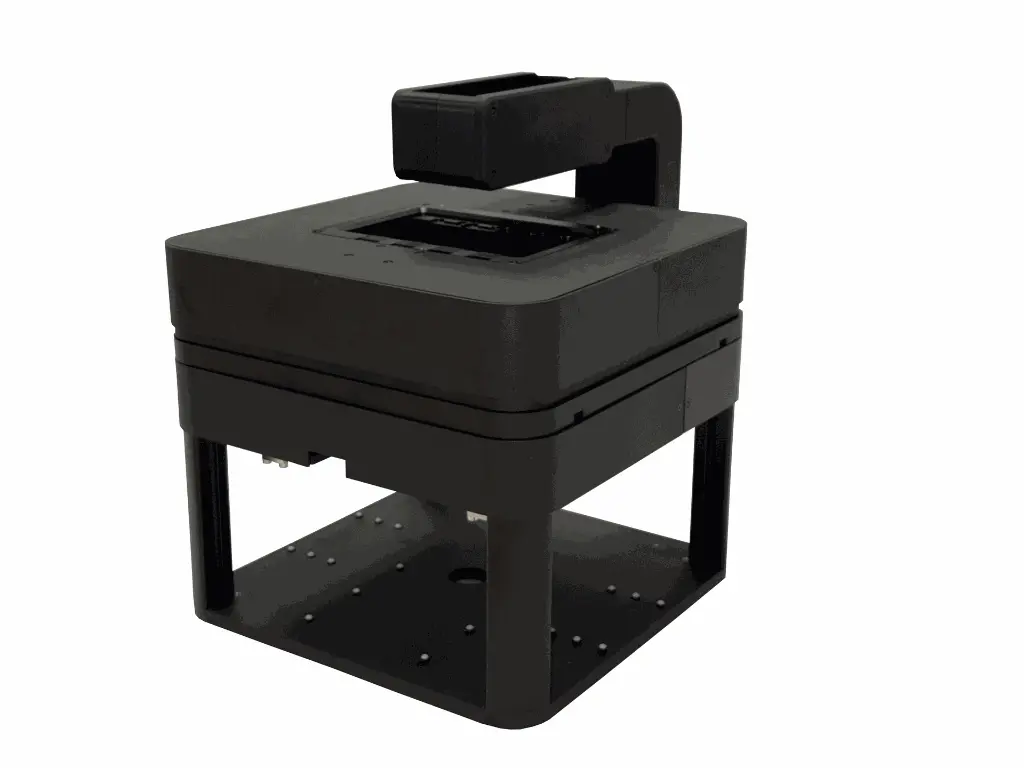

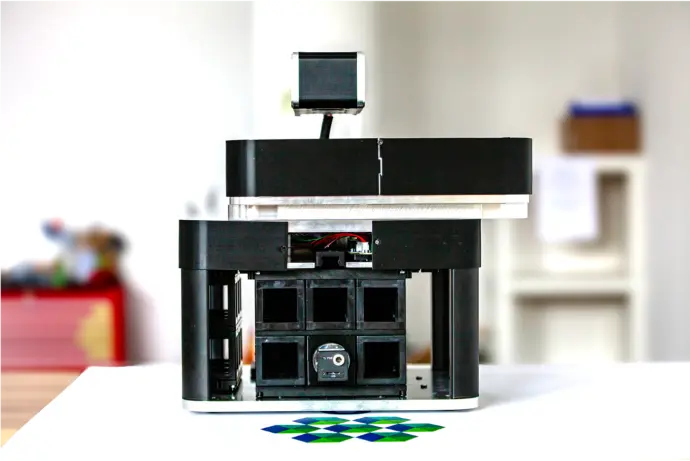

FRAME stands for Fast and Rigid Automated Microscope engine and is our next step into establishing professional modular microscopes. It provides a flexible, fully automated XYZ scanning microscope platform that separates optical pathways from mechanincal movement, enabeling incomparable flexibility. With standardized interfaces, you can erfortlessly integrate and exchange optical setups without realigment.
Modular Soft- and Hardware

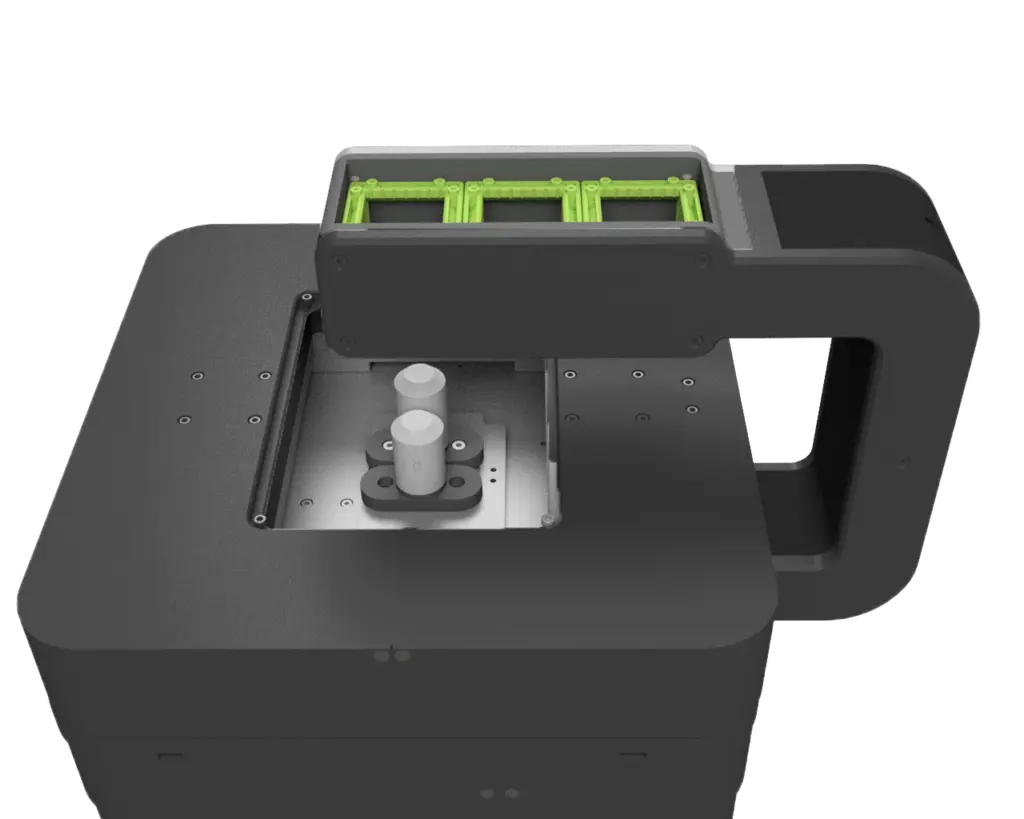

The FRAME's modular concept lets you easily assemble, test, and exchange optical setups. Pre-test optics externally, insert them directly into the stable FRAME system and instantly capute hig_quality images.
- Quick and flexible configuration
- Precise, stable and repeatable optical aligment
- Compatible with custom7§rd-party modules
- Current collaborations: FLIM LAB for flouresence lifetime imaging microscopy (FLIM) and ARKITEKT.live for decentralized lab automation
- Browser-Based Control via Raspberry Pi & Docker
- Customizable layer that can easily be swapped in and out based on customer needs
- Simple setup and unversal accessibility
- Effortless control from any browser
- integrated SDK for expanindg funktionality and automation into external services (e.g. robots)
- Open API ensuring ismple device interaction
- Modular electronics leveraging CAN bus and UC2-ESP32 firmware
KEY Features

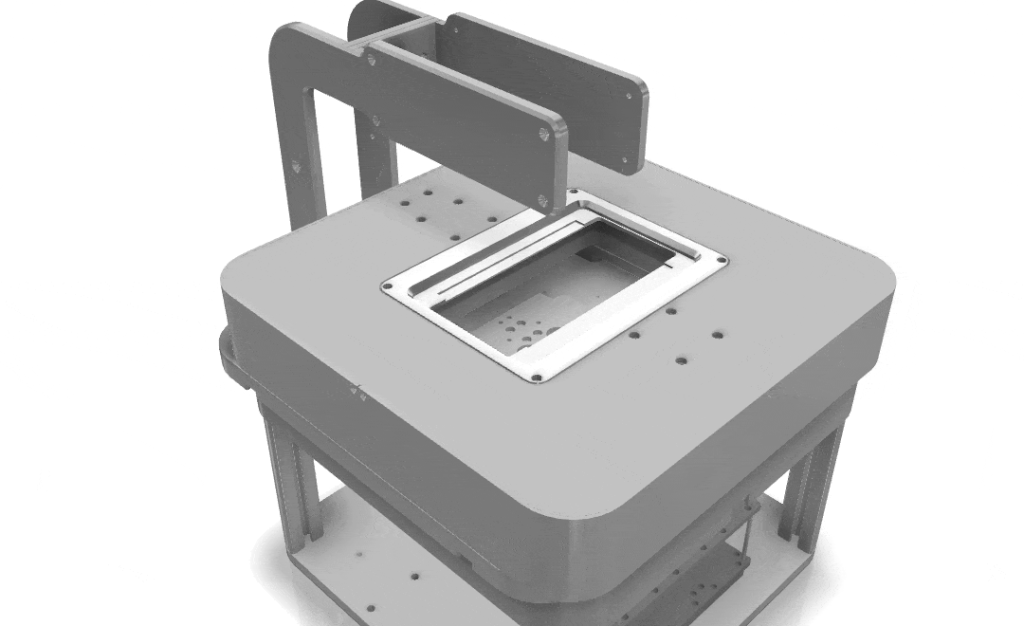

- Metal housing
- Modular and open design with standardized interfaces (UC2)
- Fully automated XYZ motion with <1um resolution and >50x50mm travel range
- Open-source hardware and software
- protoyping and proof of prinziple
- compatible with all openUC2 kits and boxes
- CAN Bus electronicss: add axes, senosrs or IO boards on the fly

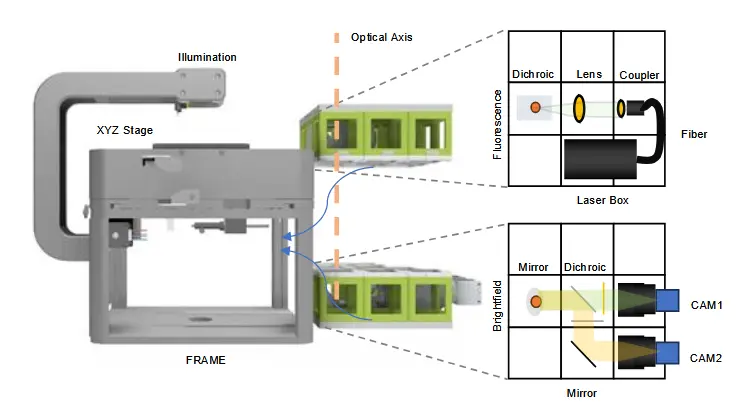

- fibre-coupled Laser + emission-filterset at choosable wavelength for widefield fluorescence (reflection) mode
- LED array for brightfield (transmission) mode
- 60x objective to allow ~1μm resolution
- mono-camera w. framerates >40fps
- oUC2e with graphical user interface
