Our compact professional entrance-grade microscope
FRAME stands for Fast and Rigid Automated Microscope engine and is our next step into establishing professional modular microscopes.

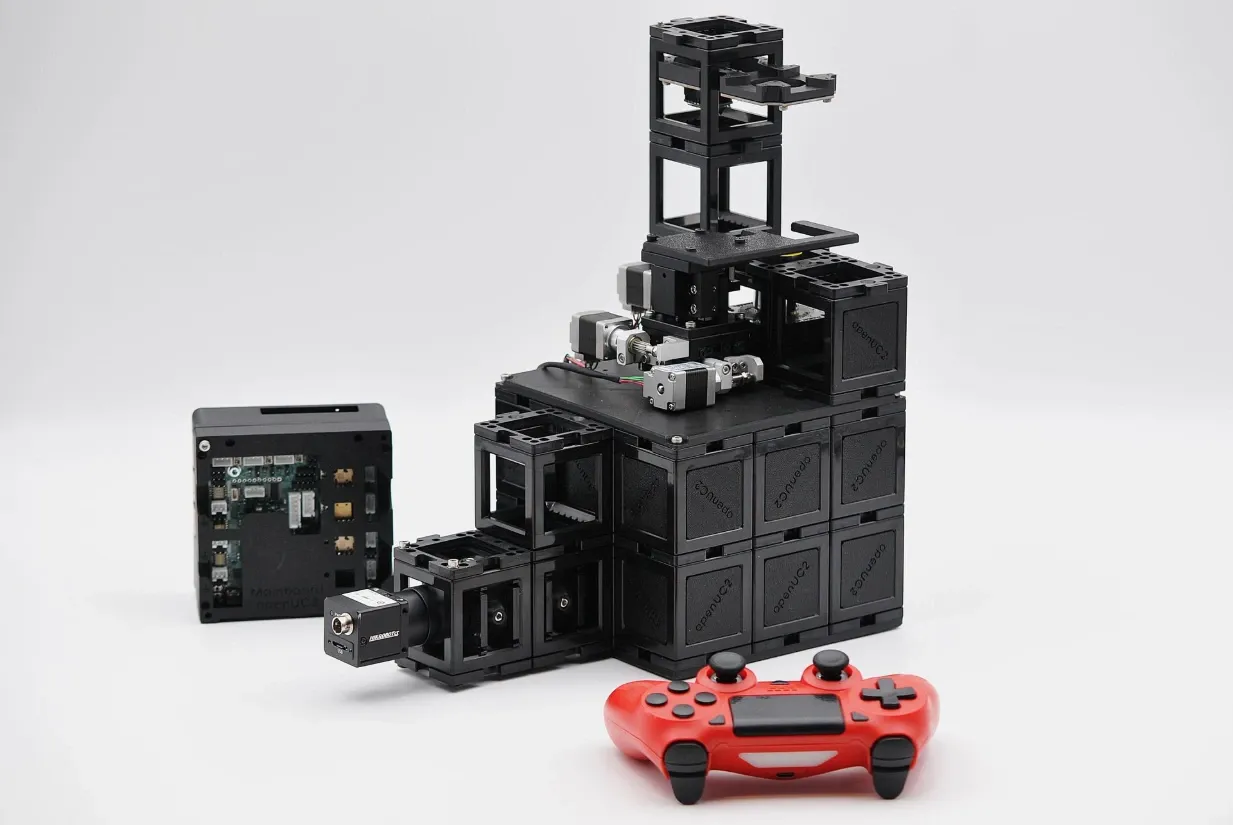

MiniFRAME remains the essential optical components of Frame and equiped with a compact, motorized XYZ stage. It is ideal for getting experiment or project started, especially when only limited movement is required to establish a proof of concept. Once experimental needs evolve, MiniFrame can later be upgraded into a full Frame system, allowing users to expand their setup without having to start from scratch.
Modular Soft- and Hardware
The FRAME's modular concept lets you easily assemble, test, and exchange optical setups. Pre-test optics externally, insert them directly into the stable FRAME system and instantly capute high quality images.
- Quick and flexible configuration
- Precise, stable and repeatable optical aligment
- Compatible with custom 3rd-party modules
- Current collaborations: FLIM LAB for flouresence lifetime imaging microscopy (FLIM) and ARKITEKT.live for decentralized lab automation
- Browser-Based Control via Raspberry Pi & Docker
- Customizable layer that can easily be swapped in and out based on customer needs
- Simple setup and unversal accessibility
- Effortless control from any browser
- integrated SDK for expanindg funktionality and automation into external services (e.g. robots)
- Open API ensuring ismple device interaction
- Modular electronics leveraging CAN bus and UC2-ESP32 firmware
KEY Features
- Metal housing
- Modular and open design with standardized interfaces (UC2)
- Fully automated XYZ motion with <3um resolution and 13x13mm travel range
- Open-source hardware and software
- protoyping and proof of principle
- compatible with all openUC2 kits and boxes
- CAN Bus electronicss: add axes, senosrs or IO boards on the fly
- choosable: fibre-coupled Laser + emission-filterset at choosable wavelength for epi-fluorescence mode
- choosable: LED array for epi-fluorescence mode
- mono-camera w. framerates >40fps
- oUC2e with graphical user interface
